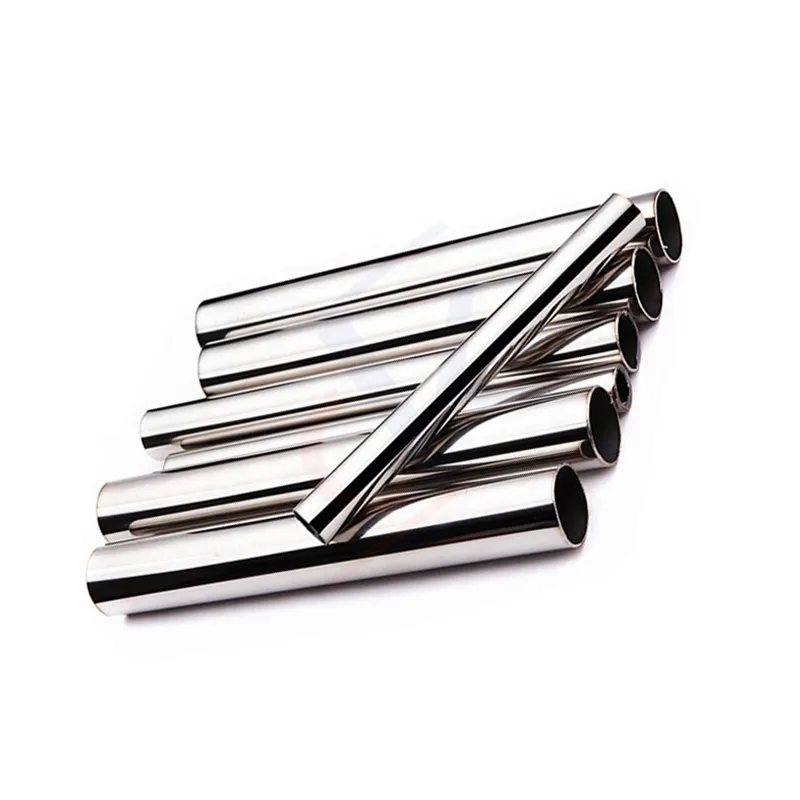

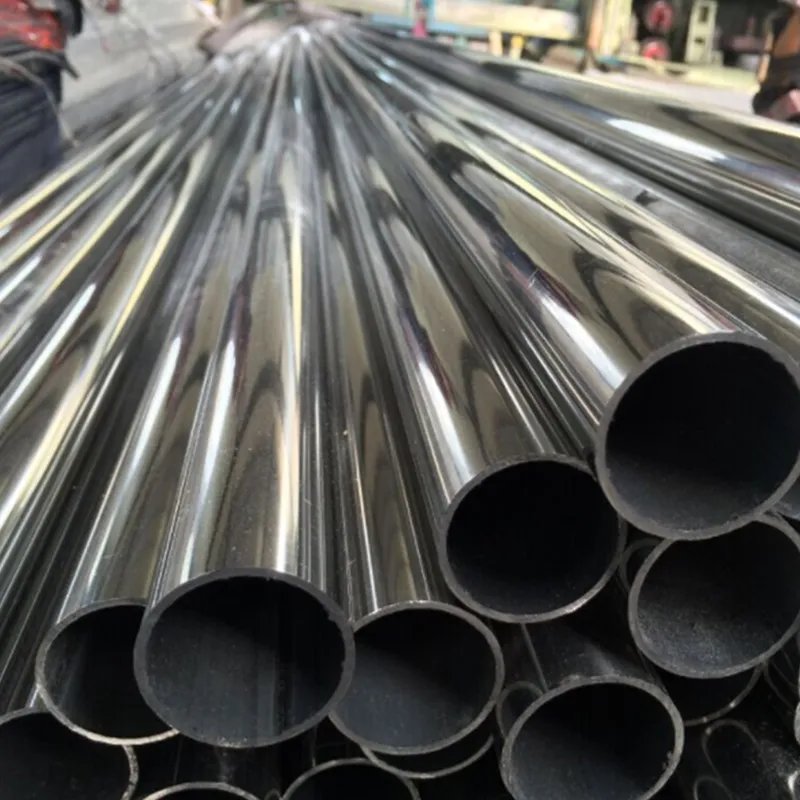

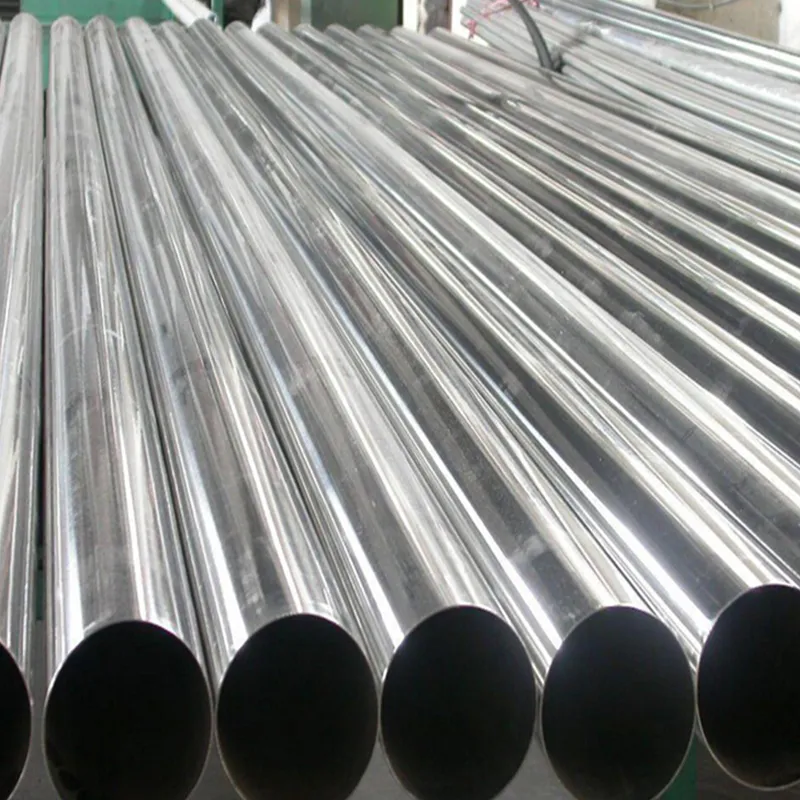

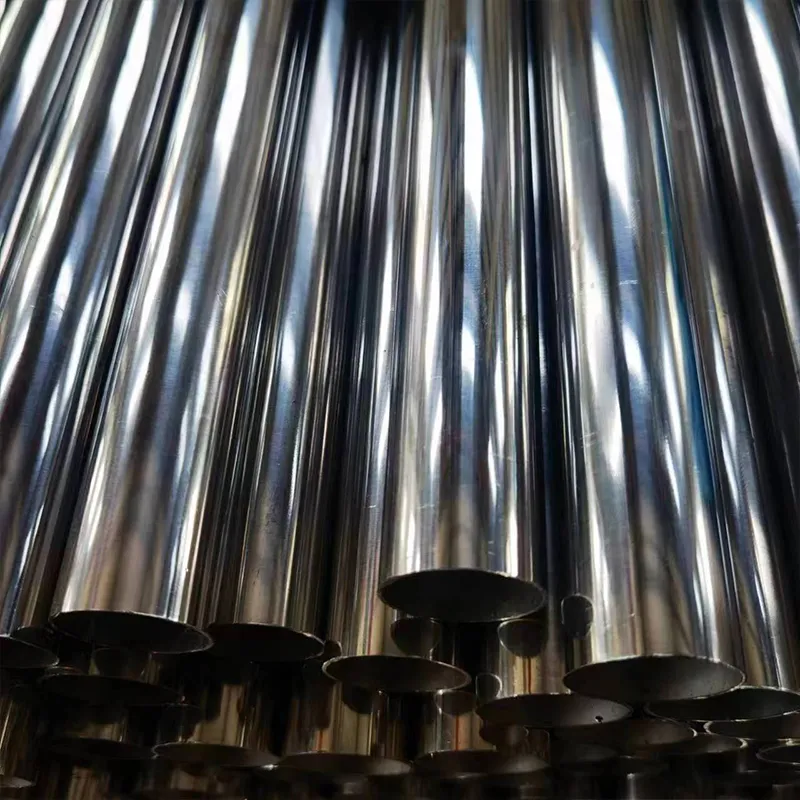

904L Stainless steel pipe

    904L Stainless steel pipe

    904L stainless steel tubing represents the pinnacle of austenitic stainless steel performance, specifically engineered to excel in highly corrosive environments where standard stainless steels like 304 or 316 are insufficient. With its exceptionally high levels of chromium, nickel, molybdenum, and copper, 904L tubing offers unmatched resistance to a wide range of corrosive media, making it the material of choice for critical applications in the chemical processing, oil and gas, and pharmaceutical industries.
  • Share:
  • Contact us Inquiry

904L stainless steel tubing represents the pinnacle of austenitic stainless   steel performance, specifically engineered to excel in highly corrosive   environments where standard stainless steels like 304 or 316 are insufficient.   With its exceptionally high levels of chromium, nickel, molybdenum, and copper,   904L tubing offers unmatched resistance to a wide range of corrosive media,   making it the material of choice for critical applications in the chemical   processing, oil and gas, and pharmaceutical industries.

Product Name

310S Stainless steel pipe

Standard

JIS, AISI, ASTM, GB,DIN, EN, etc.

Material

310S

Surface

black painted, anti rust varnished, PE coated, anti rust oiled, galvanized, checkered, color coated

Outside  diameter

6mm-426mm, or as customer's requirement

Length

1m-12m, or as customer's requirement

Wall thickness

0.5mm-10mm or customer's requirement

Technical Methods

Hot Rolled, Cold rolled

Packing

Standard Seaworthy Packing, according to customer required

MOQ

1 Ton, more quantity price will be lower

Key Features & Advantages

Exceptional Corrosion Resistance: The defining characteristic of 904L is its   superior resistance to uniform corrosion, particularly in sulfuric acid,   phosphoric acid, and other complex acidic chlorides. The addition of copper   enhances its performance in sulfuric acid environments, far surpassing   conventional molybdenum-alloyed steels.

Excellent Pitting and Crevice Corrosion Resistance: The high molybdenum and   chromium content provides outstanding resistance to localized attack from   chlorides, making it ideal for use in seawater and other chloride-containing   process streams.

High Strength and Durability: 904L offers excellent mechanical properties,   including high tensile and yield strength, ensuring structural integrity and   long service life under demanding conditions.

Outstanding Fabricability: Despite its high alloy content, 904L can be welded   and fabricated using standard techniques, although it requires greater care and   more power than standard austenitic grades due to its higher strength.

Low Carbon Content: The low carbon content (0.02% max) minimizes the risk of   carbide precipitation during welding, preserving its corrosion resistance in the   heat-affected zones (HAZ) and eliminating the need for post-weld annealing in   most cases.

Technical Specifications (Typical)

UNS Designation: UNS N08904

DIN/EN Designation: 1.4539

Chemical Composition (Typical %):

Chromium (Cr): 19.0 - 23.0

Nickel (Ni): 23.0 - 28.0

Molybdenum (Mo): 4.0 - 5.0

Copper (Cu): 1.0 - 2.0

Manganese (Mn): 2.00 max

Silicon (Si): 1.00 max

Carbon (C): 0.02 max

Iron (Fe): Balance

Mechanical Properties (Annealed Condition):

Tensile Strength: ≥490 MPa (71 ksi)

Yield Strength (0.2% Offset): ≥220 MPa (32 ksi)

Elongation: ≥35%

Hardness: ≤90 HRB

Available Specifications & Sizes

Our 904L stainless steel tubing is manufactured to meet the highest   international quality standards, including:

ASTM B677 (UNS N08904) for seamless and Welded pipe for general corrosion   service.

ASTM A312 for seamless, welded, and heavily cold worked austenitic stainless   steel pipe.

We offer a comprehensive range of:

Types: Seamless (SMLS) and Welded

Schedules: SCH 10S, 40S, 80S, and others as required.

Sizes: A wide range of Outside Diameters (OD) and wall thicknesses to meet   your specific design needs.

Surface Finish: Mill finish, polished, pickled, or passivated.

Applications

904L tubing is indispensable in applications where failure is not an option.   Its primary uses include:

Chemical Processing Industry: Reactors, heat exchangers, and piping systems   handling sulfuric acid, phosphoric acid, and acetic acid.

Oil & Gas Industry: Downhole and surface equipment, piping for sour gas   (H₂S) environments, and components in seawater cooling systems.

Pollution Control: Scrubbers and ductwork in flue gas desulfurization (FGD)   units.

Pharmaceutical Industry: Process piping where ultra-high purity and corrosion   resistance are critical.

Seawater Handling: Heat exchangers, condenser tubes, and desalination plant   components.
