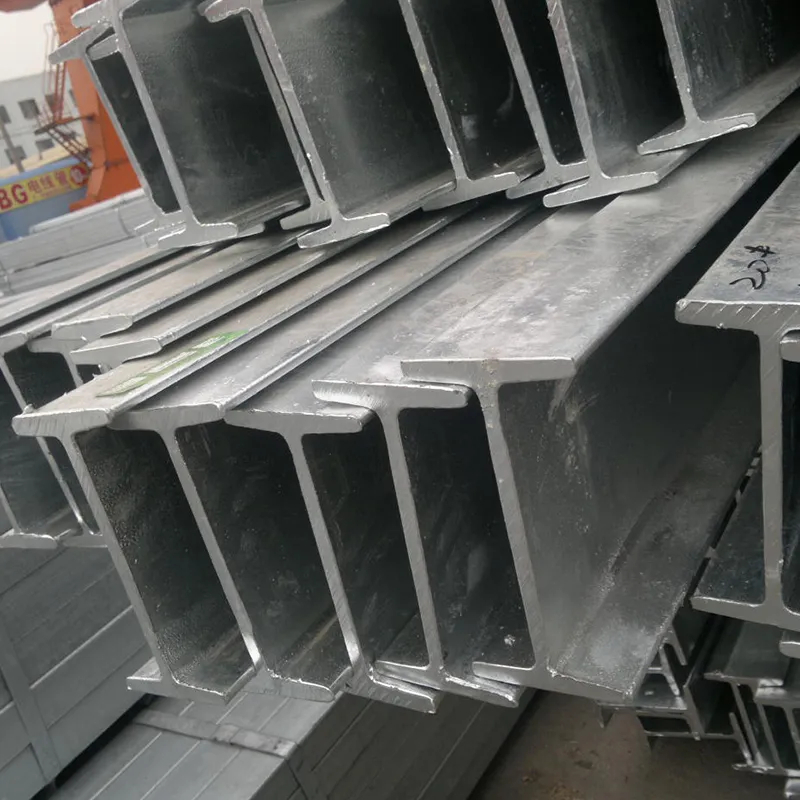

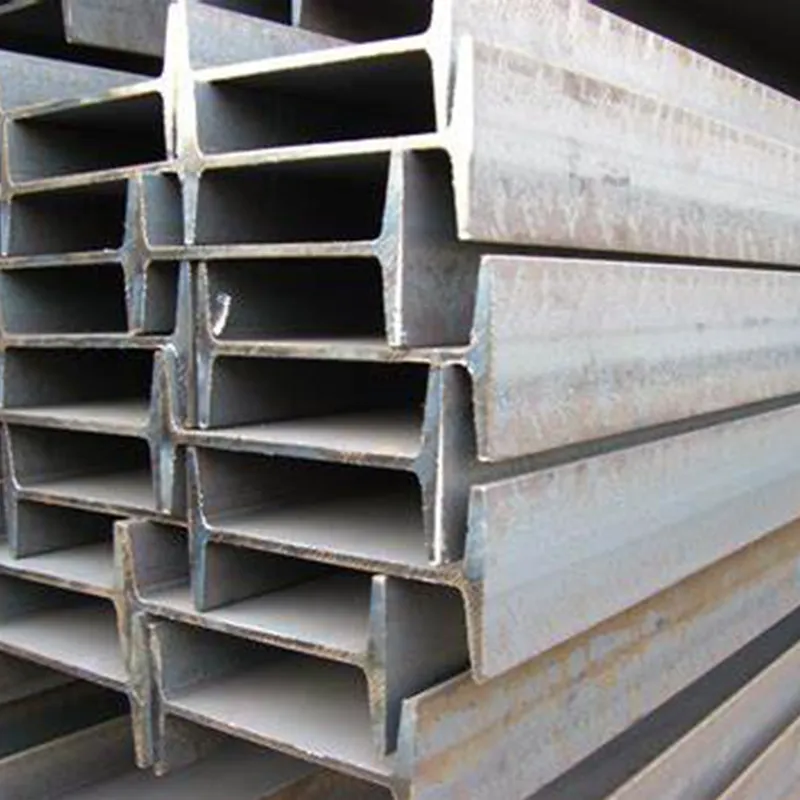

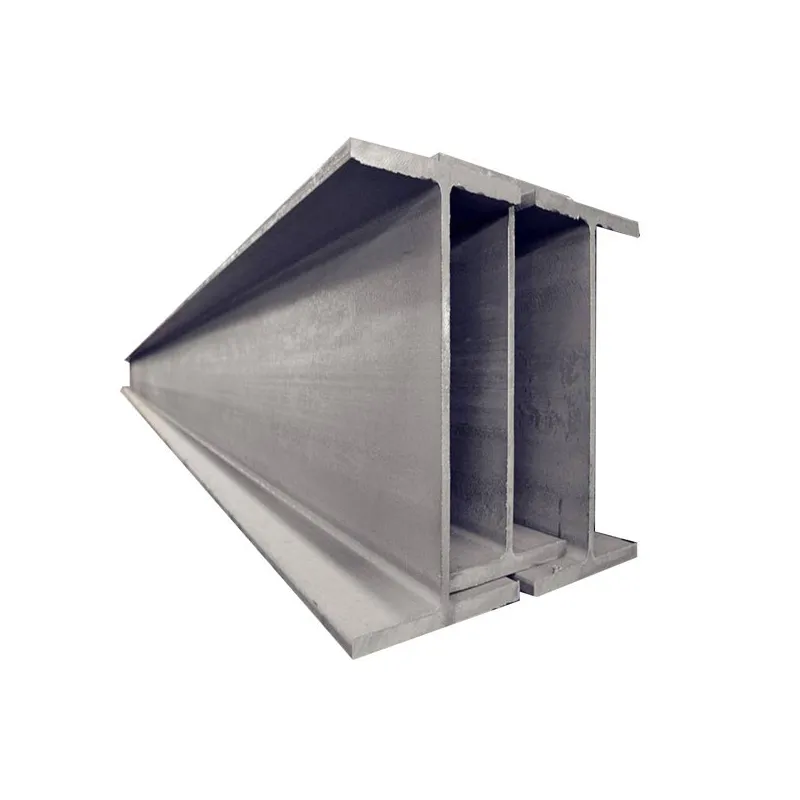

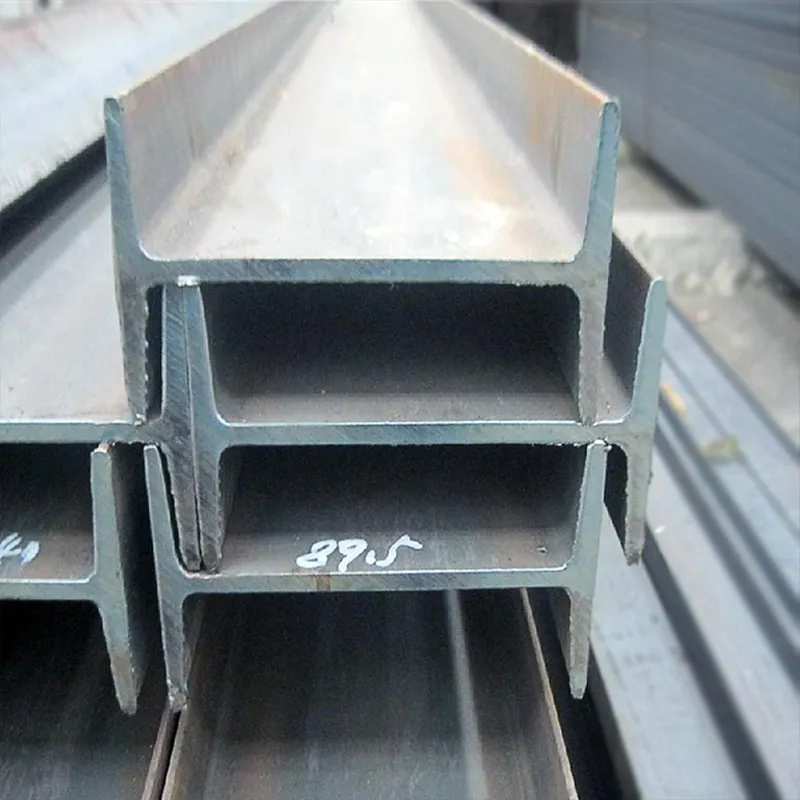

Q235B H-Beam

    Q235B H-Beam

    Q235B H-Beam is a highly versatile and widely used structural steel section, characterized by its distinctive "H" cross-section. It is a fundamental component in modern construction and industrial manufacturing due to its excellent mechanical properties, cost-effectiveness, and ease of fabrication.
  • Share:
  • Contact us Inquiry

Q235B H-beam is a highly versatile and widely used structural steel section, characterized by its distinctive "H" cross-section. It is a fundamental component in modern construction and industrial manufacturing due to its excellent mechanical properties, cost-effectiveness, and ease of fabrication.


Product Name

H-Beam Metal Steel Profile Hot Dip Galvanized Zinc Coating 30-275g M2Gzb-40c

Standard

AISI, ASTM, DIN, JIS, GB,JIS, SUS, EN, etc.

Material

Q235b

Surface

black painted, anti rust varnished, PE coated, anti rust oiled, galvaniZed, checkered, color coated

Commonly Used Size(H×B, mm)

HW 100×100,HW 150×150,HM 200×150,HM 300×200,HN 400×200,HN 500×200,or as per your request

H

100~900mm, according to customer's requirement

B

100~400mm,or as per your request

t1

5~40mm,or as per your request

t2

6~45mm,or as per your request

Technical  Methods

Hot Rolled/Cold Rolling

Packaging

According to customer required

Application

Applied in multiple fields such as architecture, bridges, machinery, energy, etc. etc.

Packing

Standard Seaworthy Packing (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)

MOQ

1 Ton, more quantity price will be lower

Key Characteristics & Material Properties

The designation "Q235B" follows the Chinese GB/T 700 standard and reveals its core material properties:

Q (Yield Strength): The "Q" stands for yield strength. The number "235" indicates a minimum yield strength of 235 MPa (MegaPascals). This is the stress level at which the material begins to deform plastically.

B (Quality Grade): The suffix "B" denotes the quality grade and impact toughness. Grade B specifies that the material has been tested for impact resistance at room temperature (20°C), ensuring good toughness for most general applications.

Chemical Composition: Q235B is a carbon structural steel primarily composed of Iron (Fe), Carbon (C), Manganese (Mn), Silicon (Si), Sulfur (S), and Phosphorus (P). It has a low carbon content, which contributes to good weldability and formability.

Excellent Weldability: Its chemical composition makes it highly suitable for all common welding methods, which is critical for assembling large structures.

Advantages of the H-Shape

The H-shaped cross-section is engineered for optimal efficiency:

High Strength-to-Weight Ratio: The design places most of the material in the flanges (top and bottom), maximizing moment of inertia and section modulus. This allows it to bear heavy loads with less material, reducing overall weight and cost.

Superior Load-Bearing Capacity: It performs exceptionally well under bending, compression, and direct loads, making it ideal for columns, beams, and trusses.

Stability: The parallel inner surfaces of the flanges simplify connections to other structural members, providing greater stability and ease of construction.

Common Applications

Q235b H-beams are the backbone of numerous projects:

Building Construction: Used as primary columns, main beams, and floor beams in commercial buildings, industrial plants, and high-rise structures.

Industrial Structures: Ideal for manufacturing workshops, warehouses, crane runways, and heavy equipment support frames.

Bridge Construction: Often used in the construction of short and medium-span bridges and pedestrian overpasses.

Infrastructure Projects: Employed in pylons, transmission towers, and other support structures.

Vehicle and Shipbuilding: Used in the chassis of large vehicles and the internal structures of ships.

Comparison with International Standards

While Q235B is a Chinese standard, it is functionally similar and often comparable to other international grades, such as:

ASTM A36 (USA)

S235JR (Europe - EN 10025)

SS 400 (Japan)

It is crucial for engineers to consult conversion tables and ensure compliance with local project specifications and design codes before substitution.

Why Choose Q235B H-Beam?

Proven Reliability: A well-established material with predictable performance.

Economic Efficiency: Offers an outstanding balance of performance and cost.

Excellent Availability: Produced in a vast range of standard sizes worldwide, ensuring easy sourcing.

Fabrication-Friendly: Easy to cut, weld, drill, and assemble on-site.

In summary, Q235B H-Beam is a fundamental, economical, and reliable choice for a massive range of structural applications where high strength, good weldability, and cost-effectiveness are paramount.
