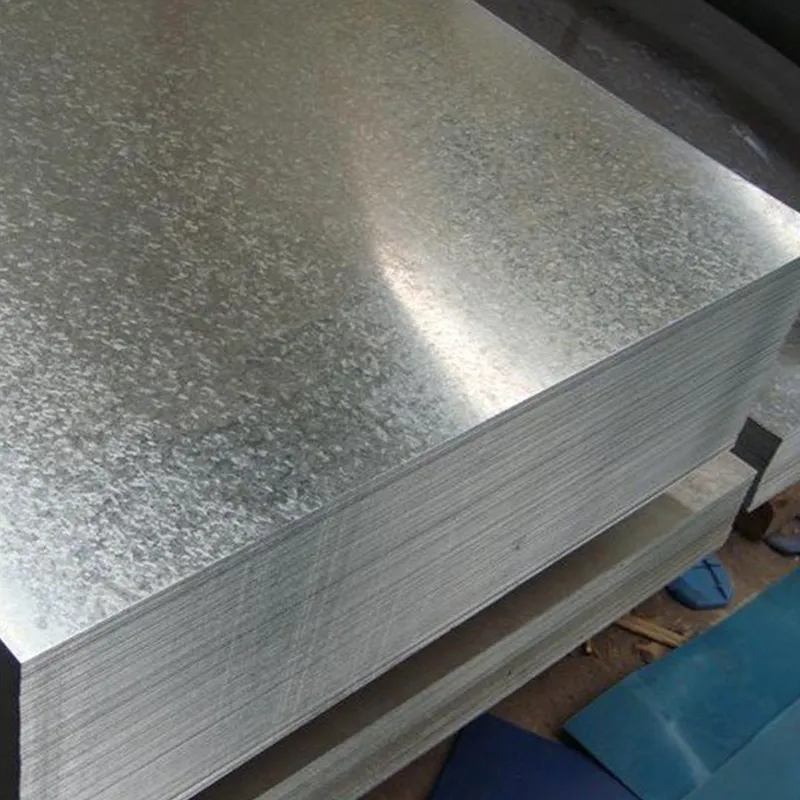

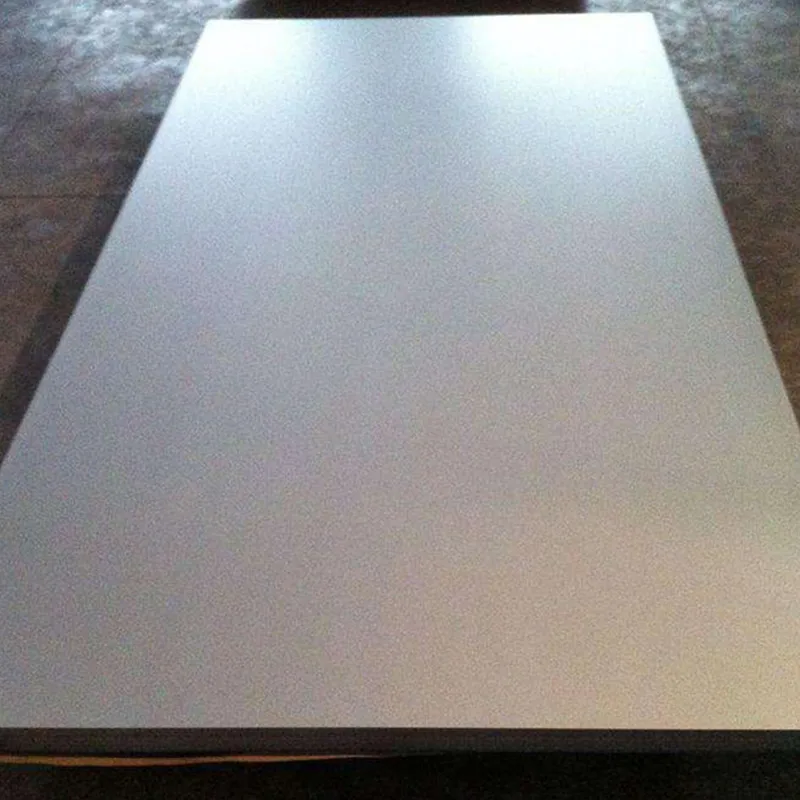

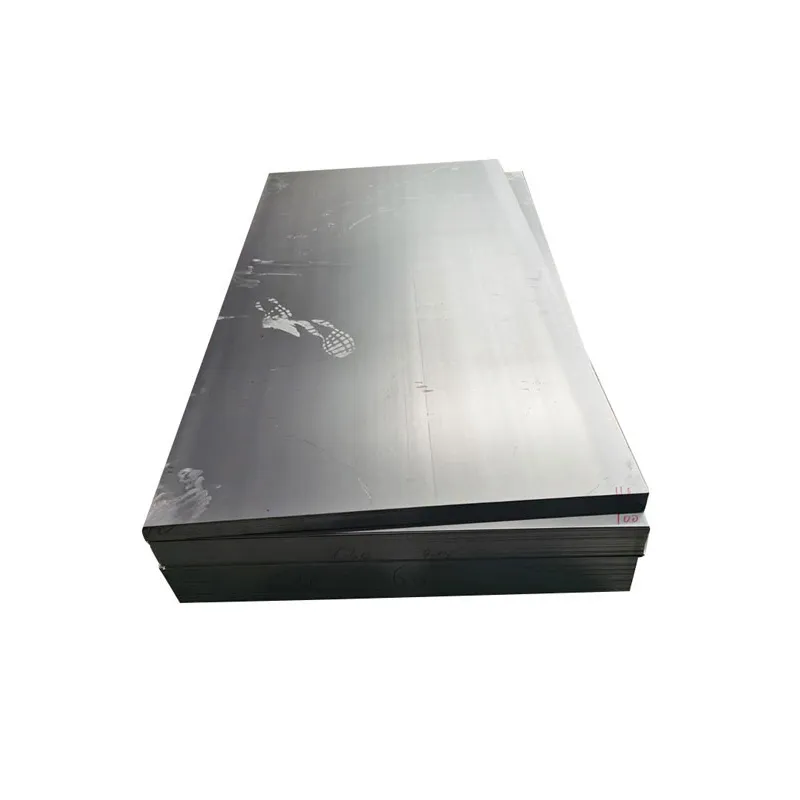

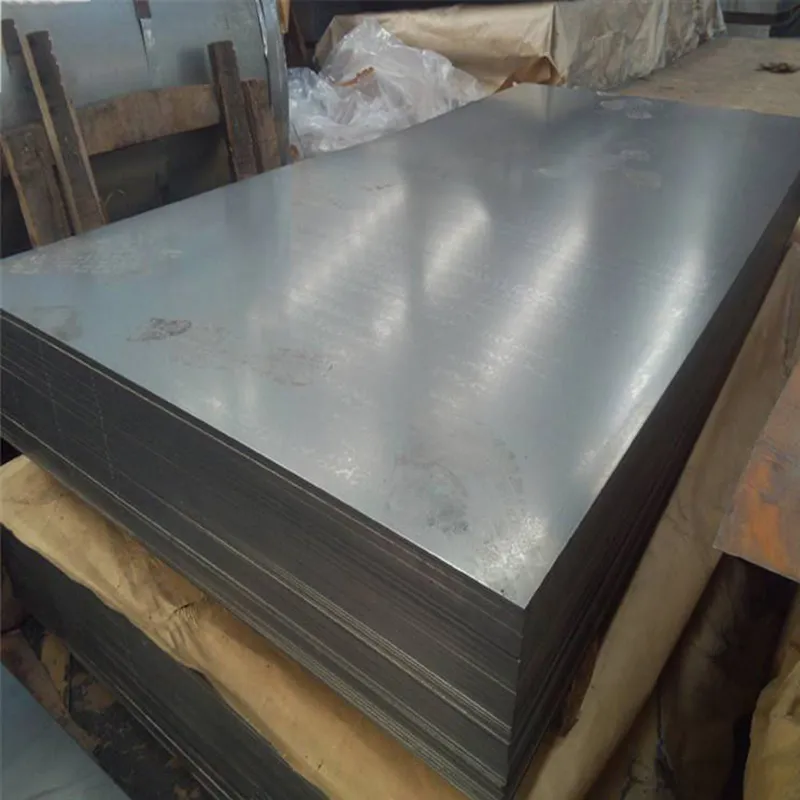

S235JR Galvanized Steel Plate

    S235JR Galvanized Steel Plate

    S235JR Galvanized Steel Plate is a high-quality, low-carbon structural steel plate renowned for its exceptional corrosion resistance and excellent mechanical properties. This product combines the strength and formability of S235JR grade steel with the protective benefits of a hot-dip galvanized coating, making it an ideal choice for a wide array of applications exposed to harsh environments.
  • Share:
  • Contact us Inquiry

S235JR Galvanized steel plate is a high-quality, low-carbon structural steel plate renowned for its exceptional corrosion resistance and excellent mechanical properties. This product combines the strength and formability of S235JR grade steel with the protective benefits of a hot-dip galvanized coating, making it an ideal choice for a wide array of applications exposed to harsh environments.

Product Name

S235JR Galvanized steel plate

Standard

EN/ASTM/JIS/GB/etc

Material

S235JR

Surface

Galvanized Coated

Zinc thickness

0.05-250g/m²

Width

914/1000/1219/1250/1500 mm,or according to customer's requirement

Length

6-12m or as per your request

Thickness

Hot rolled plate 1.2-50mm Cold rolled plate 0.2-2.0mm

Technical Methods

Hot Rolled, Cold Rolled

Packing

factory original packaging iron cable tie + export wooden pallet

MOQ

1 Ton, more quantity price will be lower

Application

Widely used for making rebar or building house rack, or the workshop; bridge; vehicle;boiler; container; vessels; machine part; etc.

Key Features & Advantages

Superior Corrosion Resistance:

The hot-dip galvanizing process coats the entire steel surface in a robust layer of zinc. This coating acts as a sacrificial barrier, providing long-lasting protection against rust, oxidation, and corrosion from moisture, humidity, and industrial atmospheres. It significantly extends the service life of structures and components.

Excellent Mechanical Properties:

As a non-alloy quality structural steel per EN 10025-2, S235JR offers good strength (with a minimum yield strength of 235 MPa) coupled with high ductility and impact resistance (at room temperature, +20°C). This ensures it can be easily fabricated, welded, punched, and formed into complex shapes without compromising its structural integrity.

Durable & Long-Lasting:

The zinc coating is metallurgically bonded to the steel substrate, making it incredibly durable and resistant to mechanical damage during handling, transport, and installation. It requires minimal maintenance, reducing long-term costs.

Aesthetic Appeal:

The galvanized coating provides a clean, bright, and spangled surface finish that is visually appealing for both structural and architectural applications. It can be used as a final finish or readily painted for additional color requirements.

Cost-Effectiveness:

By offering an optimal balance of performance, longevity, and minimal maintenance needs, S235JR galvanized steel plate provides an outstanding return on investment, outperforming many alternative materials.

Technical Specifications

Standard: EN 10025-2 (S235JR) / EN 10346 (Galvanized)

Grade: S235JR

Yield Strength (ReH): ≥ 235 MPa

Tensile Strength (Rm): 360 - 510 MPa

Elongation (A5): ≥ 26%

Impact Energy (KV at +20°C): ≥ 27 Joules

Galvanizing Process: Continuous Hot-Dip Galvanizing

Zinc Coating Mass: Typically available in ranges such as 100-350 g/m² (Z100 - Z350). Common coating classes include Z275 (G90) for excellent protection.

Surface Finish: Regular spangle, minimized spangle, or smooth surface (skin-passed) based on requirement.

Available Sizes & Customization

Thickness: Available from 1.0 mm up to 6.0 mm (depending on the producer's capabilities).

Width: Standard and custom widths to meet specific project needs.

Length: Supplied in standard sheets or custom-cut lengths.

Coating: Can be supplied with a chromate passivation treatment to prevent white rust during storage and transit.

Typical Applications

S235JR Galvanized Steel Plate is versatile and is widely used in:

Construction & Building: Structural frames, roofing and wall cladding, purlins, trusses, and building facades.

Transportation: Truck trailers, body building, shipping containers, and various automotive components.

Agricultural Equipment: Grain silos, animal housing, machinery guards, and storage bins.

Electrical & Telecommunication: Equipment cabinets, cable trays, and support structures for utility poles.

General Manufacturing: Fabrication of storage racks, shelving units, guardrails, ventilation ducts, and any product requiring a strong, corrosion-resistant steel.
