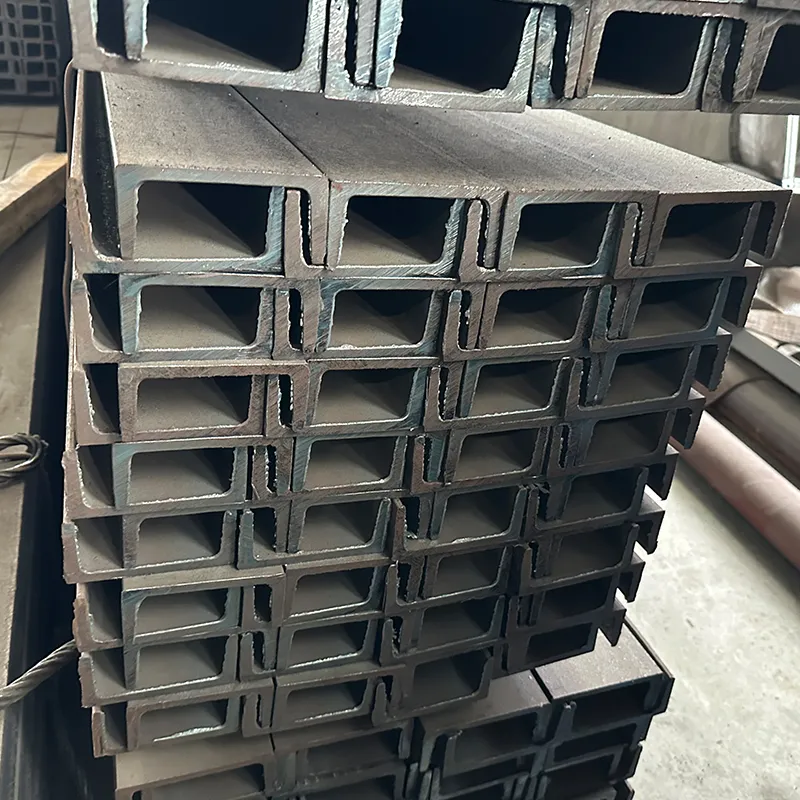

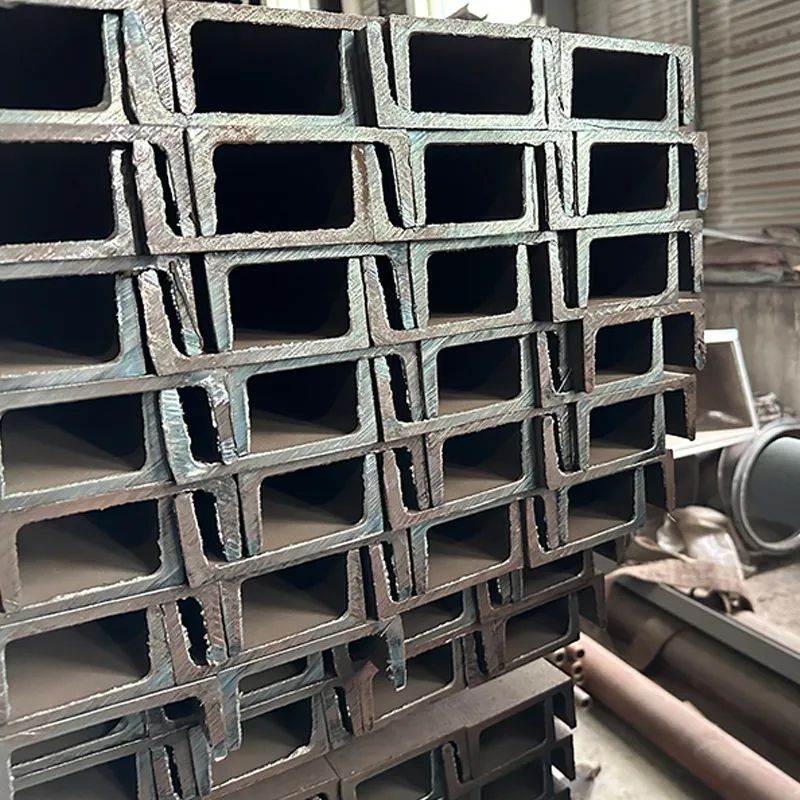

S235JR Channel Steel

    S235JR Channel Steel

    S235JR channel steel, commonly known as UPN (European standard) or UNP (international designation) sections, is a fundamental and widely used structural carbon steel product. Its distinctive "C" or "U" shape provides an excellent combination of good mechanical properties and high moment of inertia, making it a versatile choice for a multitude of load-bearing applications in construction and manufacturing.
  • Share:
  • Contact us Inquiry

S235JR Channel steel, commonly known as UPN (European standard) or UNP (international designation) sections, is a fundamental and widely used structural carbon steel product. Its distinctive "C" or "U" shape provides an excellent combination of good mechanical properties and high moment of inertia, making it a versatile choice for a multitude of load-bearing applications in construction and manufacturing.

Product Name

S235JR Channel steel

Standard

AISI, ASTM, DIN, JIS, GB,JIS, SUS, EN, etc.

Material

S235JR

Surface

black painted, anti rust varnished, PE coated, anti rust oiled, galvaniZed, checkered, color coated

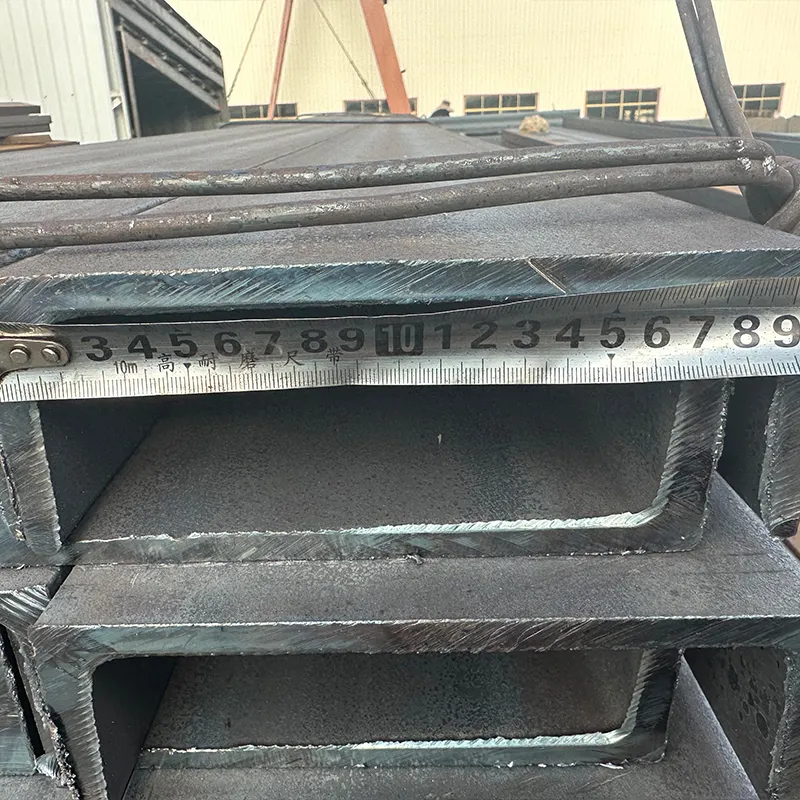

Commonly Used Size(h×b×d, mm)

50×37×4.5,63×40×4.8,80×43×5.0,100×48×5.3,120×53×5.5,140×58×6.0,or as per your request

h

50~400mm, according to customer's requirement

b

37~104mm,or as per your request

d

4.5~14.5mm,or as per your request

Technical  Methods

Hot Rolled/Cold Rolling

Packaging

According to customer required

Application

Applied in multiple fields such as architecture, bridges, machinery, energy, etc. etc.

Packing

Standard Seaworthy Packing (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet)

MOQ

1 Ton, more quantity price will be lower

Key Characteristics & Material Grade

The designation "S235JR" is defined by the European standard EN 10025-2, which specifies the technical delivery conditions for flat and long products of non-alloy structural steels.

S (Structural Steel): Denotes its primary use in construction and structural applications.

235: Indicates the minimum yield strength of 235 Megapascals (MPa) at a thickness of ≤ 16mm. This is a measure of the steel's resistance to permanent deformation.

JR: Signifies the impact energy (toughness) value at room temperature (+20°C / 68°F). "JR" guarantees a minimum of 27 Joules, making it suitable for use in environments where moderate stress and impact are expected.

This grade is considered a general-purpose, non-alloy quality steel with good weldability and formability.

Mechanical Properties

The mechanical properties are guaranteed by the EN 10025-2 standard. Key values include:

Yield Strength (ReH): ≥ 235 MPa (for nominal thickness ≤ 16mm)

Tensile Strength (Rm): 360 - 510 MPa

Elongation at Break (A5): ≥ 26% (indicating good ductility)

Impact Energy (KV): ≥ 27 J at +20°C

Common Applications

Due to its strength, availability, and cost-effectiveness, S235JR channel steel is employed in countless projects:

Building and Construction: As purlins, roof trusses, framing systems, braces, and supports in industrial buildings, warehouses, and residential structures.

Heavy Equipment & Machinery: For constructing frames, bases, and supports for machines, conveyors, and agricultural equipment.

Transportation and Automotive: In the fabrication of truck trailers, vehicle chassis, and container frameworks.

Infrastructure: Used in bridges, platforms, walkways, and guardrails.

General Fabrication: A staple material for fabricating racks, shelves, workbenches, gates, and various custom frames and supports.

Advantages of S235JR Channel Steel

High Strength-to-Weight Ratio: Provides significant structural support without excessive weight.

Excellent Weldability and Machinability: Can be easily joined, cut, drilled, and formed using standard workshop methods.

Cost-Effective: As a widely produced standard grade, it offers great value for its performance.

Versatility: Available in a wide range of standard sizes (e.g., UPN 80 to UPN 400) to suit various design requirements.

Durability: Offers reliable performance under static and dynamic loads in normal atmospheric conditions.

Standards and Equivalents

European Standard: EN 10025-2 (UPN profiles are specified in EN 10365).

International Equivalent: ASTM A36 (USA) is a very similar general-purpose structural steel and is often considered a functional equivalent for many applications, though chemical and mechanical properties are not identical.
